Feature：

Material: Stainless steel / Nickel alloy

Workmanship: Stamping, casting, polishing, galvanizing, silver plating
Export: Australia Asia Europe America
Packing: Export standard packaging
Authentication: Certification by the four major classification societies
Application field: Marine Engineering, Military Industry, New Energy Semiconductor

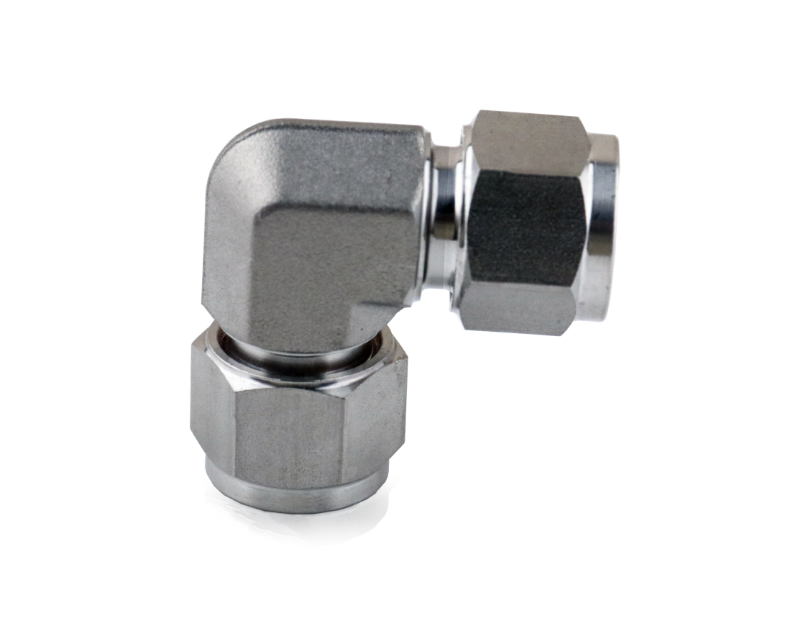

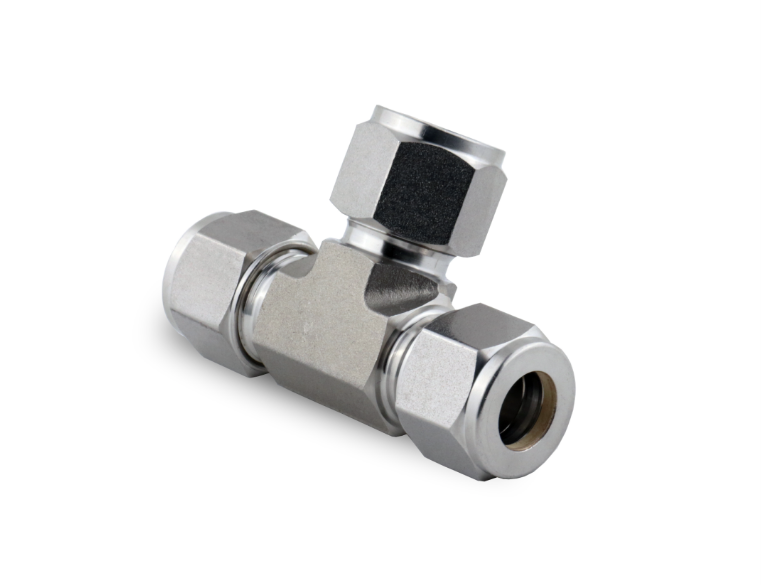

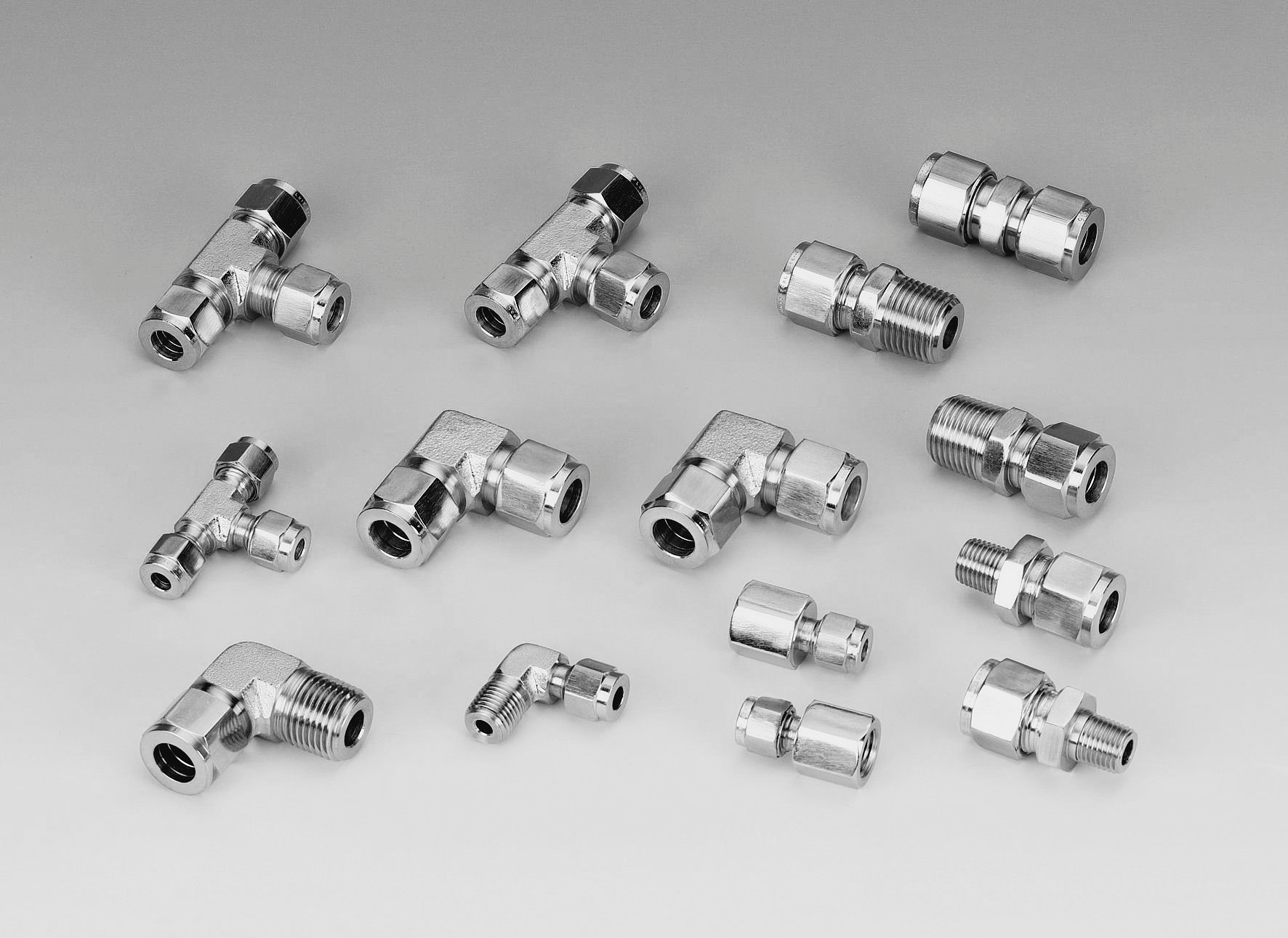

Category: Double Ferrule Compression Fittings

Chemical composition:

Grade	%	Ni	Cr		Mo			C	Mn	Si	S	P
316	Min.	10	14		2
	Max.	14	18		3			0.08	2	1	0.03	0.045

Alloy	%	Ni	Cr	Mo	Nb+N	Fe	Al	Ti	C	Mn	Si	Cu	P	S
625	Min.	58	20	8	3.15
	Max.		23	10	4.15	5	0.4	0.4	0.1	0.5	0.5	0.5	0.015	0.015

Alloy	%	Ni	Cr	Fe	C	Mn	Si	Cu	P	S
600	Min.	72	14	6
	Max.		17	10	0.15	1	0.5	0.5	0.015	0.015

Grade	Fe%	Ni%	Cr%	Mo%	N%	C%	Mn%	Si%	S%	P%	Cu%	W%
Super Duplex 32760	Bal.	6.0-8.0	24.0-26.0	3.0-4.0	0.2-0.3	Max 0.03	Max 1.0	Max 1.0	Max 0.01	Max 0.03	0.5-1.0	0.5-1.0

Alloy	%	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
Monle K500	Min.	63	27.0	2.30	0.35
	Max.		33.0	3.15	0.85	2.0	1.5	0.01	0.25	0.5
